Installation Friendly Package

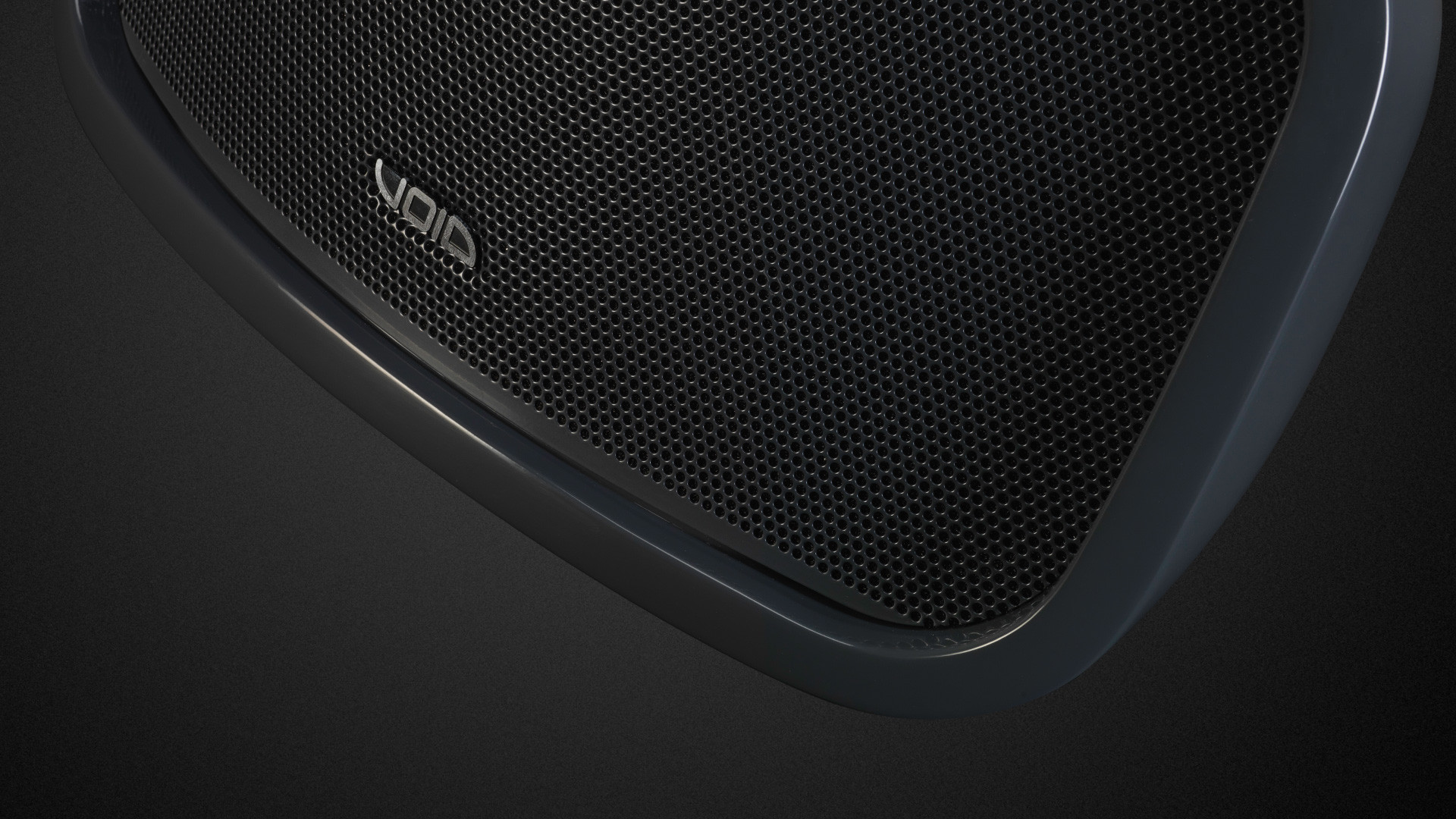

The Cyclone 8 embraces an innovative design that's easy to install. The condensed form reinforces efficiency and ease of use without compromising on audio fidelity. While state-of-the-art porting minimises turbulent noise, maximising LF performance.

Weather Protected IP-55 Rating

Cyclone 8's UV resilient cellulose finish and weather-protected IP-55 rating make it perfectly suited for a host of indoor and outdoor applications. Including nightclubs, bars, hotels and retail outlets, as well as beach bars, poolside and yachts.

Accessories Details

Key Features Details

  • Passive 8” two-way surface mount loudspeaker
  • Compact fibreglass enclosure
  • Non-resonant structure
  • Marine-grade stainless steel fittings
  • UV resilient paint
  • Weather-protected with an IP-55 rating (BS EN 60529:1992 +A2:2013)

Full Specifications Details

  • Frequency Response: 70 Hz - 20 kHz ±3 dB
  • Efficiency1: 94 dB 1W/1m
  • Crossover Points: 2 kHz passive
  • Nominal Impedance: 8 Ω
  • Power Handling2200 W AES
  • Maximum Output3: 118 dB cont, 121 dB peak
  • Driver Configuration: 1 x 8”, 1 x 1” coaxial
  • Dispersion: 90°H x 90°V
  • Connectors: Phoenix
  • Weight: 14 kg (31 lbs)
  • Enclosure: Fibreglass composite
  • IP rating: IP-55 (BS EN 60529:1992 +A2:2013)
  • Mounting: Type 80 plate
  • Colour: Custom colours available upon request

1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
