AmplifiersBIAS Q5

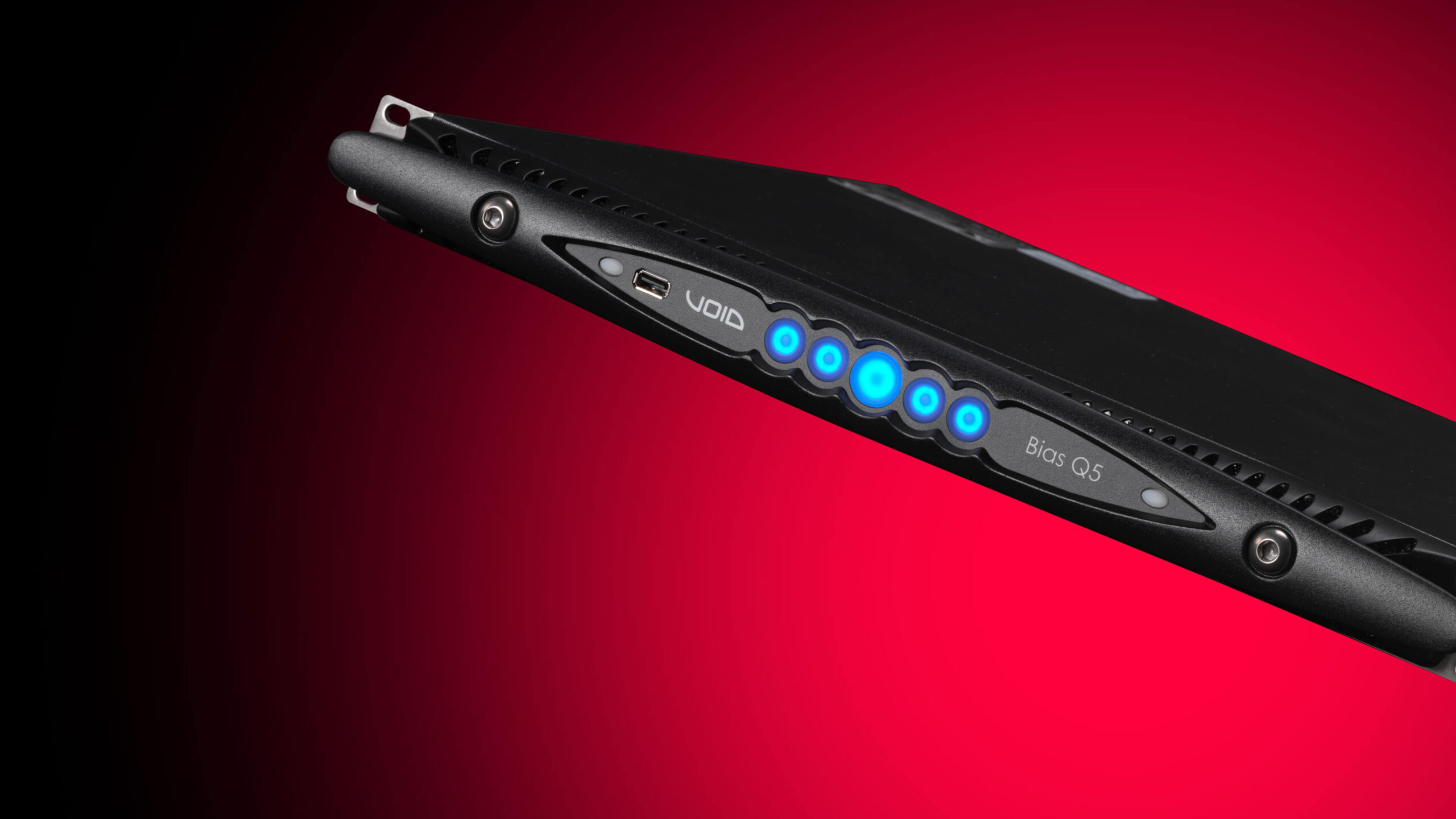

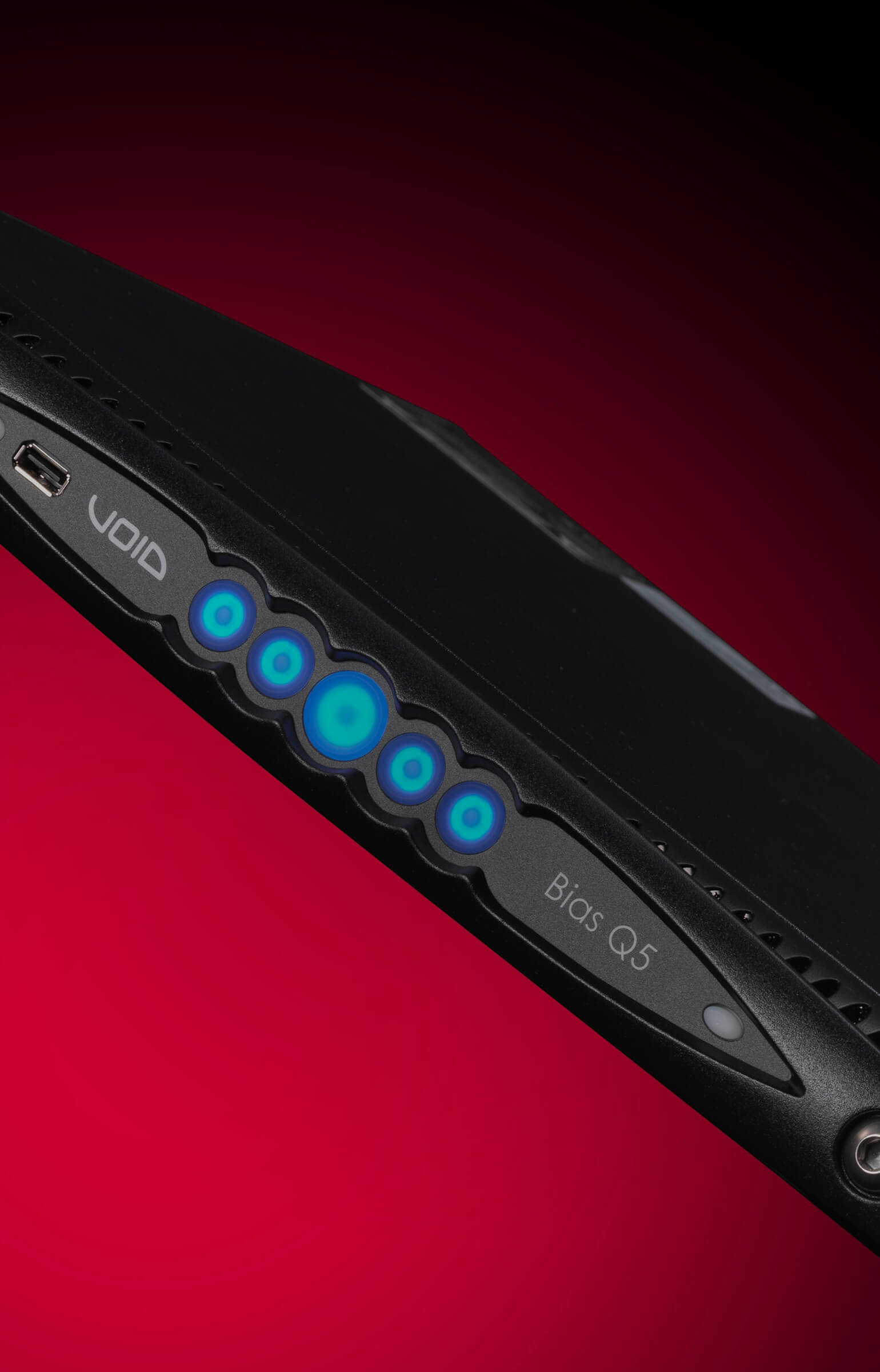

A compact 4-channel amplifier with integrated DSP, delivering 1600 W per channel designed for efficient, reliable performance in a compact 1U format.
Maximum system output
The Bias Q5 is designed to deliver the highest levels of output and control across large-scale systems. Combining powerful amplification with advanced DSP and system integration, it is well suited to touring, events and demanding installation environments where performance and reliability are critical.

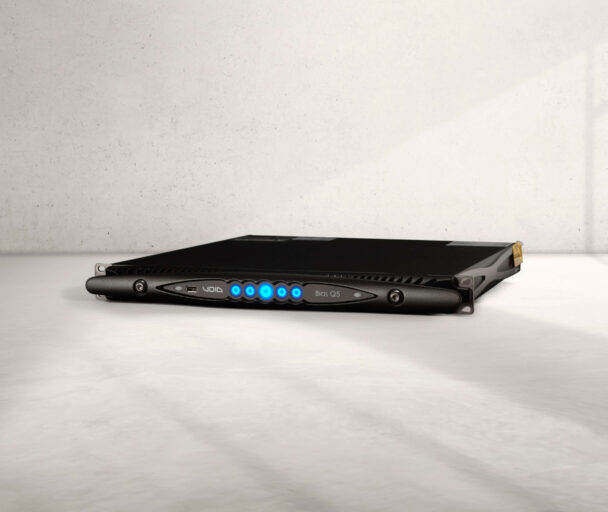

Bias Q5 at a glance
-
Advanced integrated DSP amplifier
-
1600 W per channel
-
Four channel amplifier
-
Powers high-impact systems
Advanced signal processing
With flexible routing, integrated DSP and full compatibility with ArmoníaPlus, the Bias Q5 enables complete system control and optimisation. Remote monitoring, input redundancy and advanced signal processing ensure consistent performance across complex system configurations.
Technical Specifications
Key Features
-
4 channel amplifier delivering 1600 W per channel (8 Ω)
-
3000 W per channel at 4 Ω
-

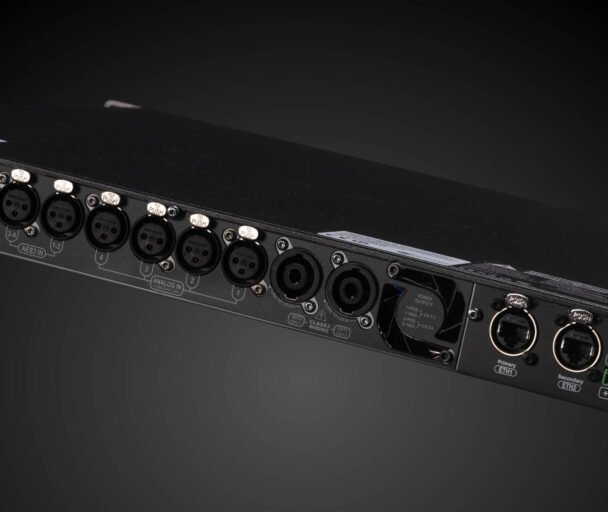

Analogue and AES3 audio inputs
-
Full suite of DSP tools and monitoring via ArmoníaPlus software
-
Highly efficient Class-D design with patented SRM (Smart Rails Management) technology
-
Automatic power sharing, optimising delivery for asymmetrical loads
-
Access to Void preset marketplace, offering optimised frequency response, FIR-optimised phase response, and a suite of protection limiters
-
Universal mains operation (90–264 V AC) single phase
-
Bi-phase and three-phase operation supported
-
WM Touch compatible
Understand what your space needs
Every space deserves careful consideration to achieve the best possible performance. Loudspeaker and amplifier selection, placement, coverage and tuning all play a critical role in the final result. Our team can help you design the right system and get it right first time.
