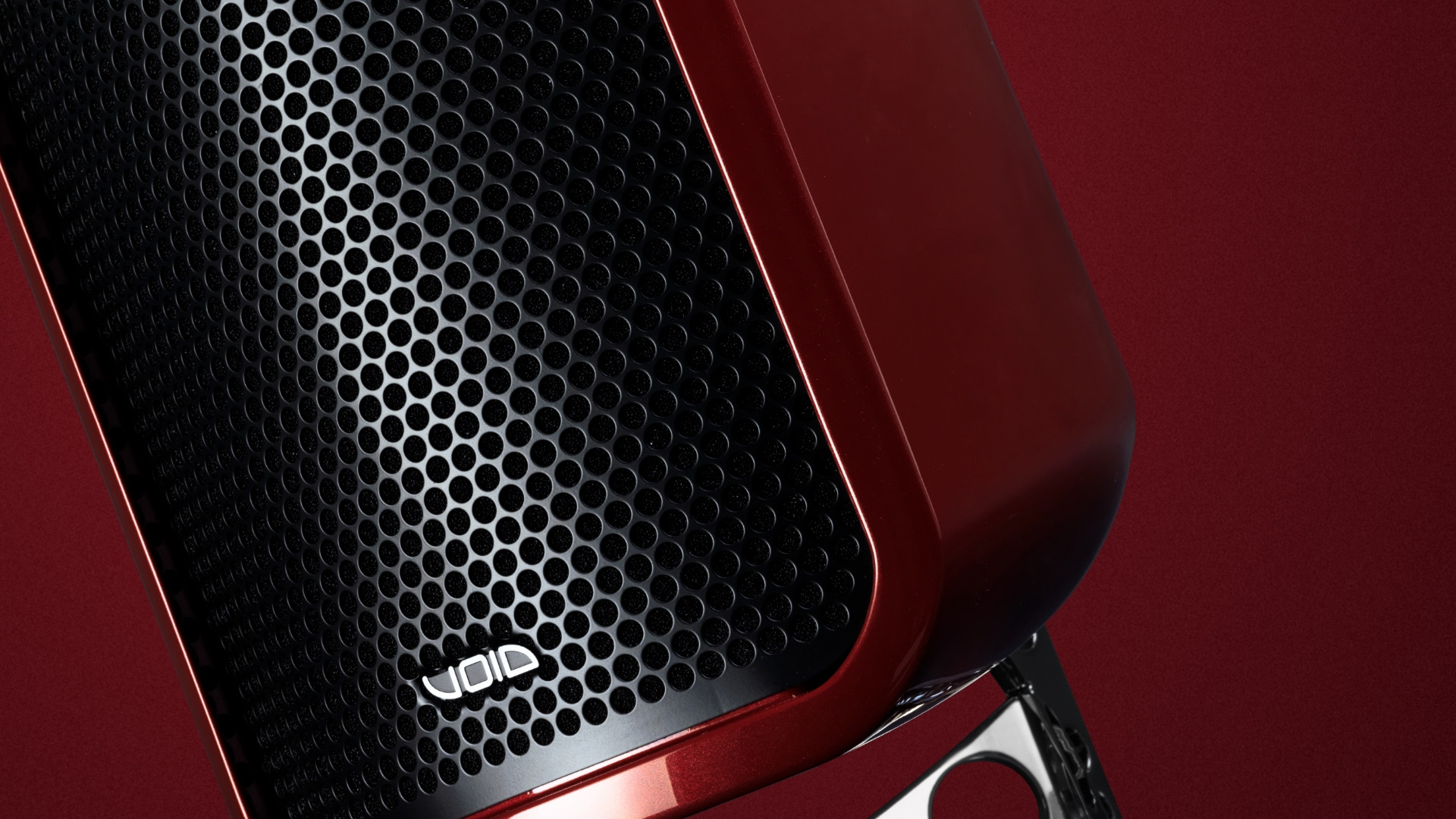

Cyclone 208i

• Powered loudspeaker with 600 W integrated amplifier module
• Two 150 W outputs (4 Ω) via Phoenix connector.
• 24 Bit, 48 kHz DSP with 4 onboard preset banks
• Compatible with Void speaker preset library and ArmoníaPlus software
• Combination XLR and ¼” jack inputs with Phoenix outputs
• Reflex loaded dual 8” low frequency loudspeaker
• Tough, high excursion transducers with 2” voice coil
• Stylised design in a low resonance fibreglass enclosure

• Frequency response: 42 Hz - 120 Hz ±3 dB
• Maximum Output¹: 119 dB cont, 125 dB peak
• Crossover Points: 80 Hz - 120 Hz active
• Driver Configuration: 2 x 8” LF
• Weight: 19.5 kg (42.99 lbs)
• Enclosure: Fibreglass composite
• Finish: Smooth cellulose
• Grille: Perforated steel with foam filter
• Mounting: Ground stack bracket
• Power: IEC C13
• Input: Combo XLR and 1/4” jack
• AD/DA: 24-bit, 48 kHz
• Onboard Presets: 4
• Amplifier²: 300 W (for LF) 2 x 150 W (4 Ω)
• Nominal power requirement: AC 100 V - 240 V, 50/60 Hz with PFC
• Consumption Standby: < 0.5 W, Idle 10 W, 1/4 of max output power @ 4 Ω 150 W
• IP Rating: IP10

¹ Calculated

• Cyclone 208i Specification Sheet
• Cyclone 208i User Guide
• Cyclone 208i Line Drawing (pdf)
• Cyclone 208i Line Drawing (dwg)
• Presets
• Cyclone 208i 3D Model (dwg)
• Accessory Guide
