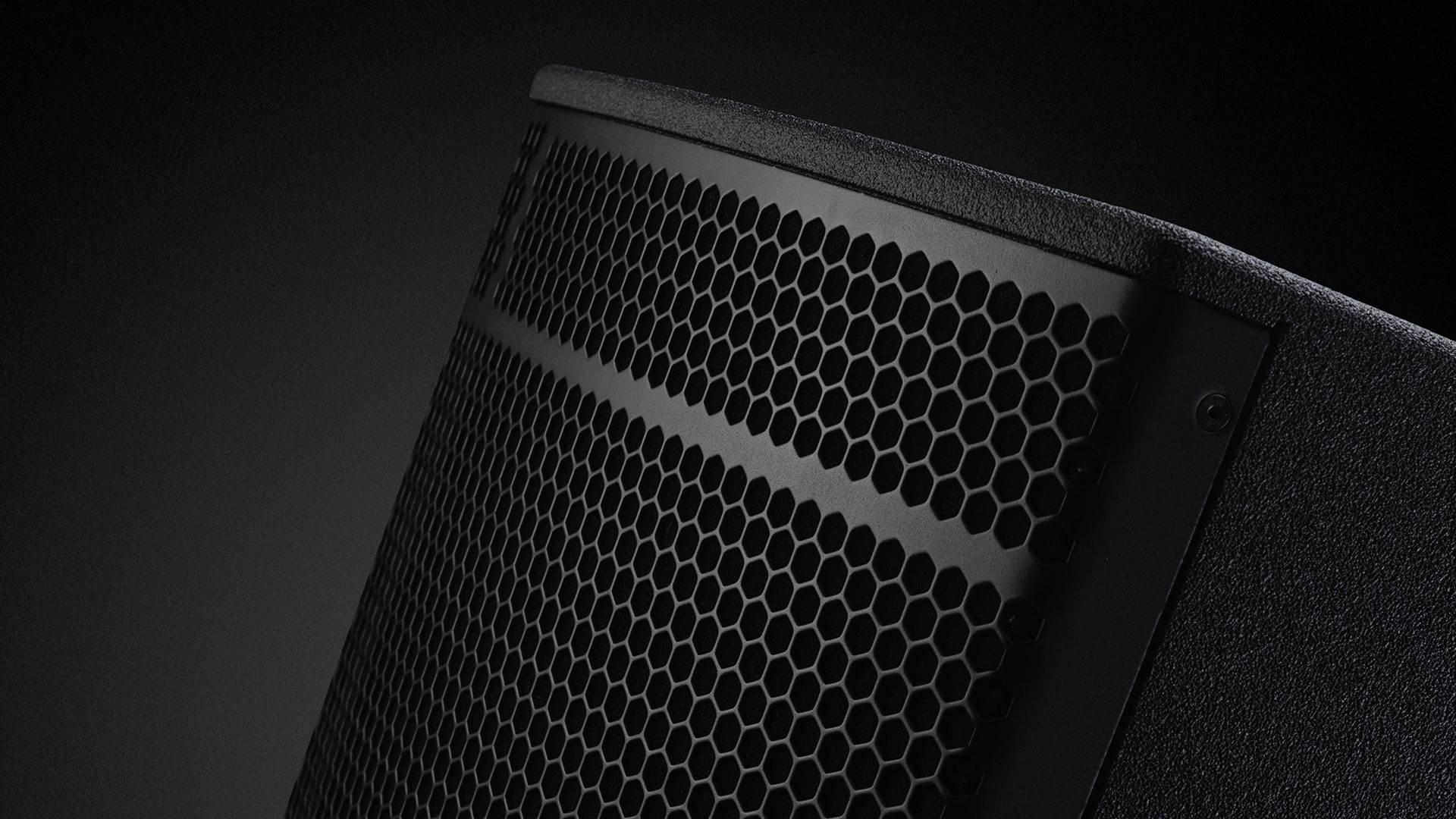

ArcM 15

Quick and Easy Rigging

The ArcM 15 is a versatile piece of equipment which utilises ergonomic designs, without sacrifice to the cosmetic shape. To allow for integration with existing infrastructure of rental partners and installers the ArcM 15 is unpowered.

Enhanced Mobility and Manual Handling Features

Several steps have been taken to enhance the mobility and manual handling requirements, including ergonomically designed handles and truck-friendly packing dimensions. ArcM 15 is well-suited for festivals and events, theatres and live music venues.

Accessories Details

Key Features Details

High power 15” + 1.4’’ coaxial neodymium transducer
Two wedge operating modes (stage and nearfield monitoring)
Integral pole mount for 35 mm diameter poles
Low profile design for cleaner stage lines
Ergonomically designed handles for easy manual handling
External dimensions optimised for truck packing
Hard-wearing polyurea finish
Type 80 rear mounting plate for wall/ceiling fixing

Full Specifications Details

Frequency response: 50 Hz - 18 kHz ±3 dB
Efficiency¹: 100 dB 1W/1m
Crossover point: 1.2 kHz (passive)
Nominal impedance: 1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
Power handling²: 500 W AES
Maximum output³: 126 dB cont, 132 dB peak
Driver configuration: Coaxial 1 x 15” - 1 x 1.4” neodymium
Dispersion: 80°H x 80°V
Connectors: 2 x 4-pole speakON™ NL4
Height: 371 mm (14.6”)
Width: 550 mm (21.7”)
Depth: 530 mm (20.9”)
Weight: 22.5 kg (49.6 lbs)
Rigging: Integral top hat, type 80 mounting bracket
Finish: Textured polyurea

¹Measured in half space²AES2 - 1984 compliant³Calculated
