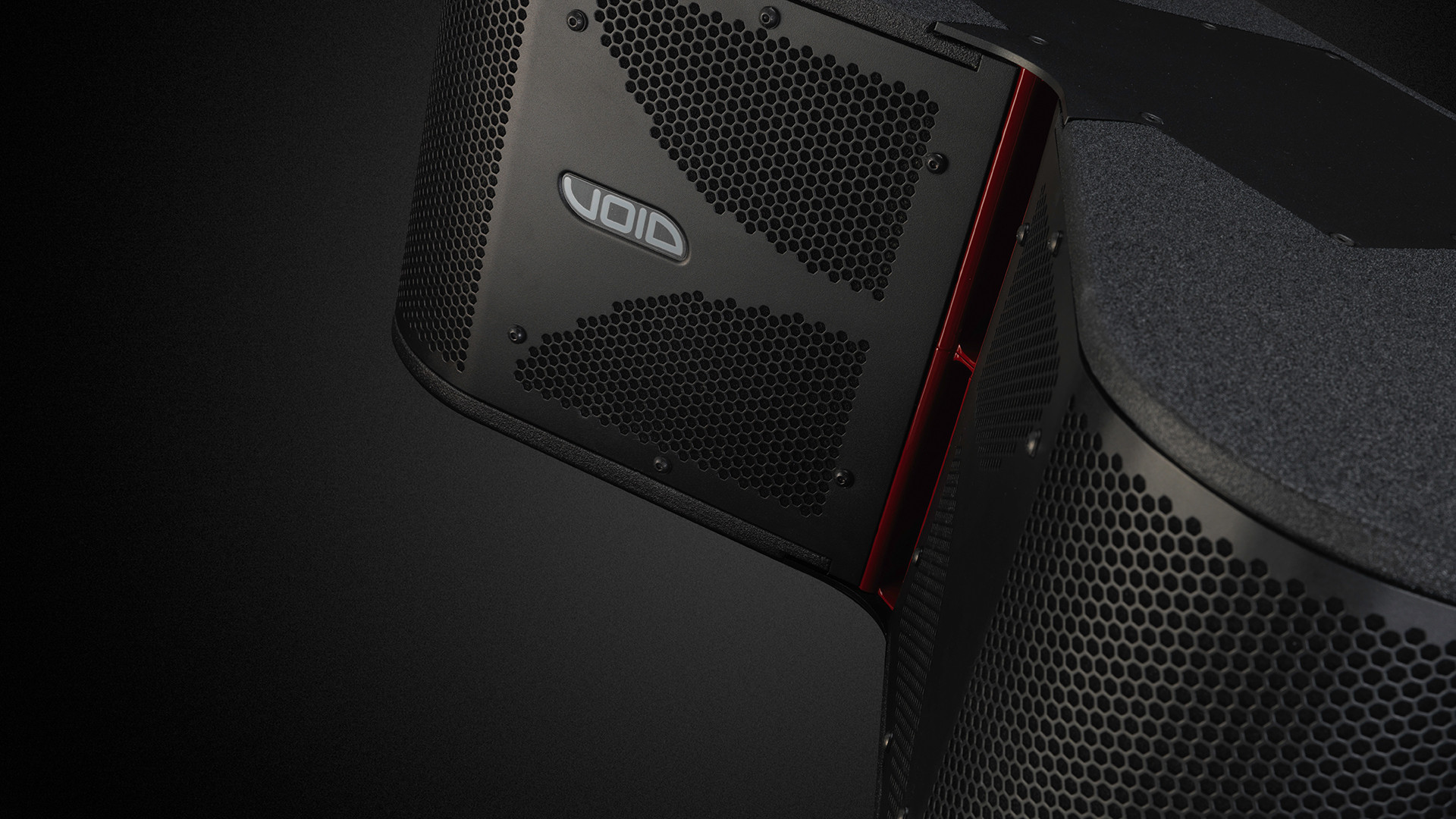

Arcline 8

• Arcline 8 Flightcase
• Arcline 8 Fly Frame
• Arcline 8 Fly Frame Flightcase
• Arcline Fly Frame Extension Bracket Set

• 110° horizontal dispersion
• True cylindrical wavefront
• 2 x 8” mid drivers with phase device
• 2 x 8” horn loaded low frequency drivers
• 2 x 1.4” compression drivers
• Rigging angle pre-selected before you lift the enclosures
• Ground stackable

• Frequency response: 110 Hz - 20 kHz single enclosure, 90 Hz - 20 kHz three enclosures
• Efficiency¹: LF: 100 dB | MF/HF: 106 dB 1W/1m
• Nominal impedance: 2 x 16 Ω
• Power handling²: LF: 500 W AES, HMF: 500 W AES
• Maximum output³: 132 dB cont, 139 dB peak
• Driver configuration: 2 x 1.4” compression drivers, 2 x 8” mid drivers with phase device, 2 x 8” horn loaded low frequency drivers
• Dispersion: 110°H x 12°V
• Protection: Internal electronic control
• Connectors: 2 x 4-pole speakON™ NL4
• Weight: 39 kg (86 lbs)
• Enclosure: 15 mm multi-laminate plywood
• Rigging: angle pre-selected before you lift the enclosures, ground stackable
• Finish: Textured ‘TourCoat’ polyurea
• Grille: Perforated steel with foam filter

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated
