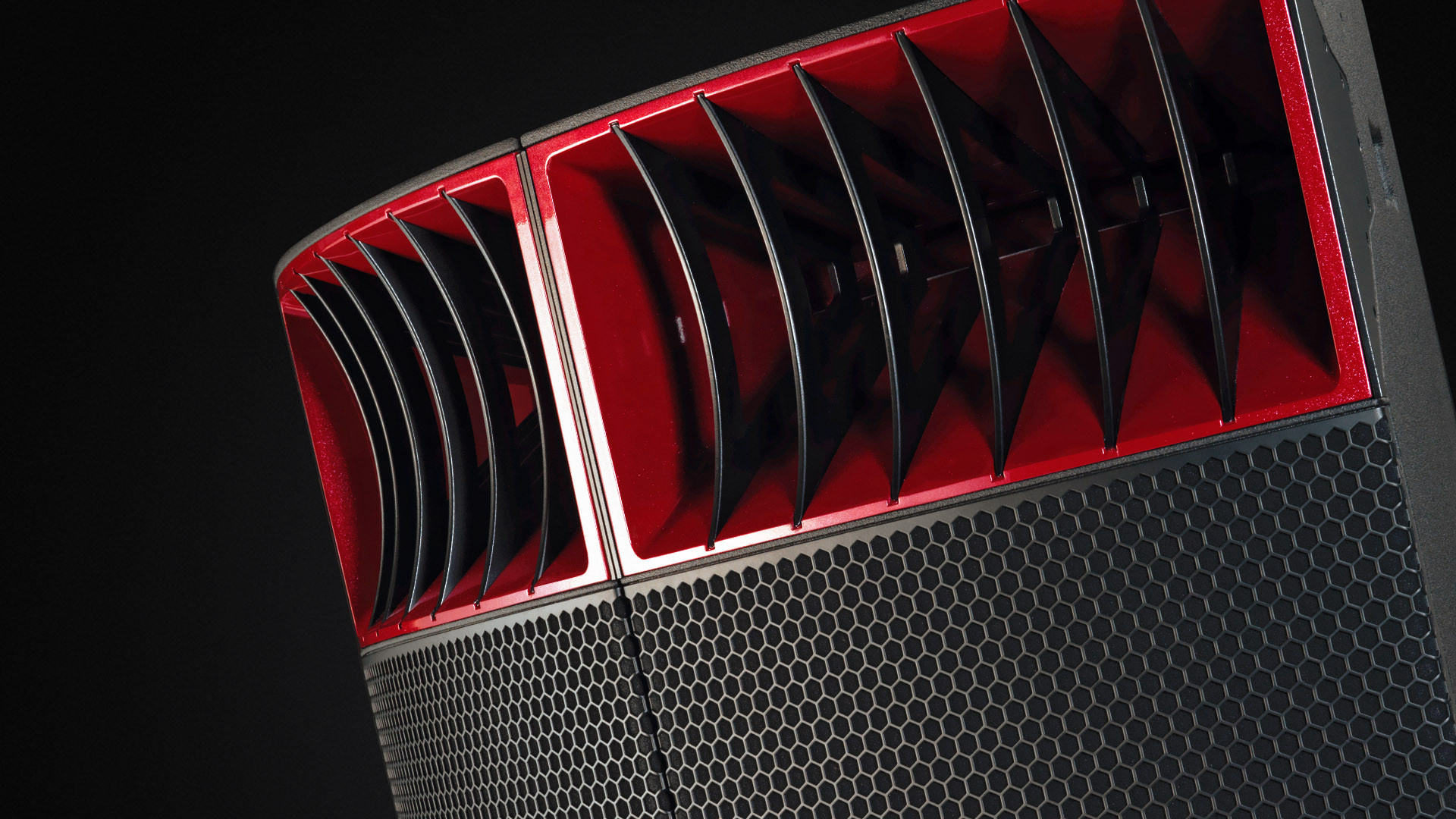

Arclite

Arrayable Point Source

Designed for pairing with Arcline 218 and 118 subwoofers, Arclite operates as a two-way active, three-way arrayable point source loudspeaker. A true point source alternative to the Arcline 8, offering scalability with maximum output and coherence.

Predictable and Reliable Behaviour

Tailored for audio integrators and sound engineers with a focus on touring. Guaranteeing predictable behaviour in the most challenging applications. An arrays dispersion and sound pressure levels can be configured precisely to best serve any demands.

Case Studies

View all

Accessories Details

Arclite Vertical Fly Bar

Key Features Details

Two-way active, three-way arrayable point source
Ground stack or flying configurations available
Asymmetrical combination waveguide and horn optimised with FEA
Dual NL4 speakON™ connector with link out for quick and easy set up
Arrayable in vertical and horizontal configurations
Blanking plate for use without rigging

Full Specifications Details

Frequency response: 45 Hz - 18 kHz ±3 dB
Efficiency¹: MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
Nominal impedance: LF: 8 Ω, MHF: 16 Ω
Power handling²: LF: 1000 W, MHF 190 W
Maximum output³: 133 dB Cont, 139 Peak
Driver configuration: 1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
Dispersion: 35° H x 60° V (25° up - 35° down)
Connectors: 2 x 4-pole speakON™ NL4
Weight: 44 kg (97 lbs)
Enclosure: 15 mm birch plywood
Mounting: Ground stack or suspended
Finish: Textured ‘TourCoat’ polyurea

¹Measured in half space² AES2 - 1984 compliant ³Calculated
