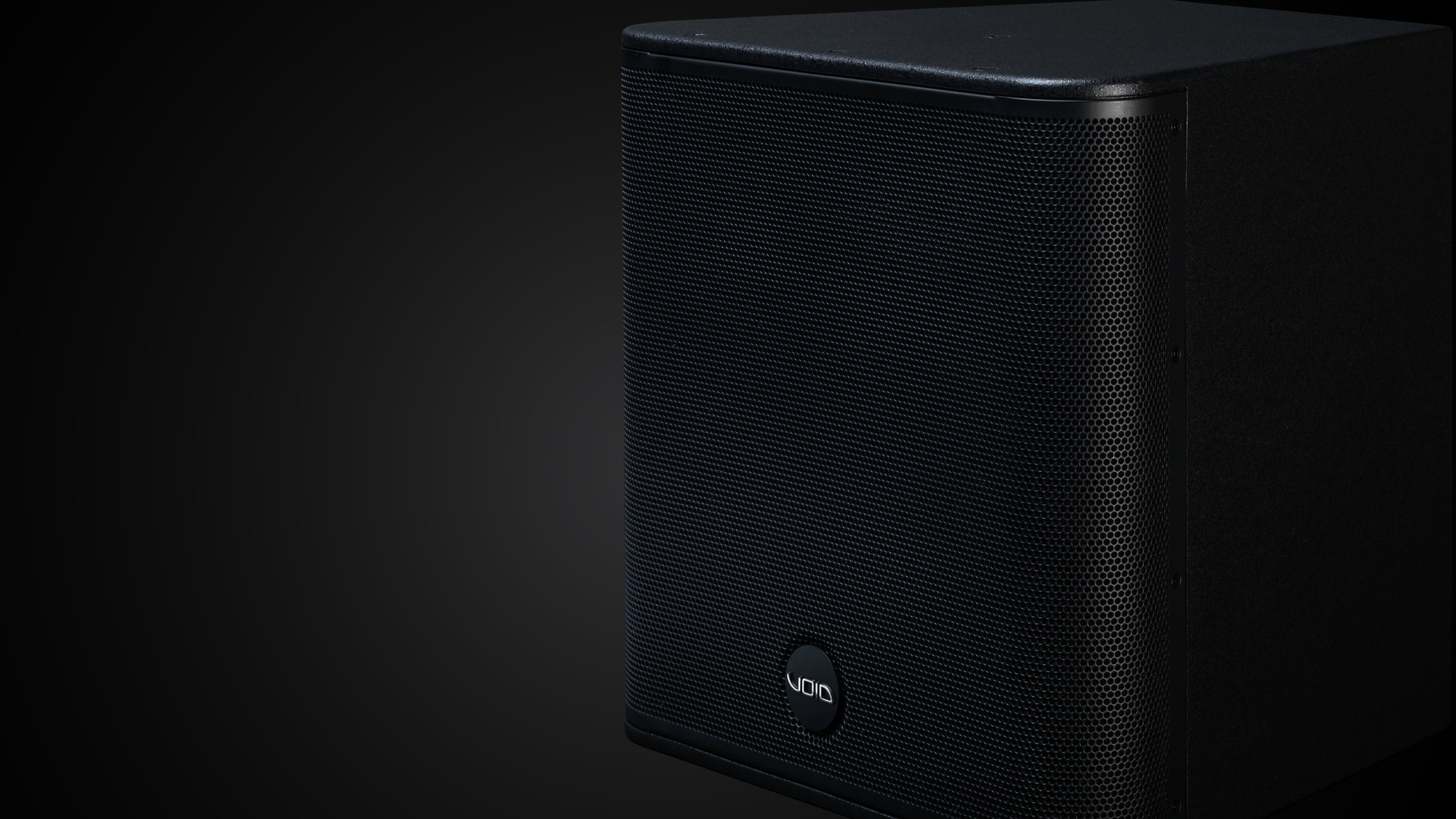

Venu 14 V2

• 3 Hole Top Hat Black
• 3 Hole Top Hat White
• T80 Ceiling Bracket (1000mm) - Black
• T80 Ceiling Bracket (1000mm) - White
• T80 Ceiling Bracket (350mm) - Black
• T80 Ceiling Bracket (500mm) - Black
• T80 Ceiling Bracket (500mm) - White
• T80 Pole Bracket Kit - Black
• T80 Pole Bracket Kit - White
• T80 Stud Bracket - Black
• T80 Stud Bracket - White
• T80XL Wall Bracket - Black
• T80XL Wall Bracket - White
• Venu 14 V2 Yoke Bracket - Black
• Venu 14 V2 Yoke Bracket - White

• Compact and unobtrusive appearance
• Premium coaxial driver with neodymium magnet and FEM enhanced motor design
• Controlled dispersion with optimised rotatable waveguide
• 1 x 13.5”, 1 x 1.4” Coaxial Driver
• SpeakON™ and Phoenix connector with link through
• Textured polyurethane finish, optional custom colours
• Perforated steel grille
• Versatile mounting options

• Frequency response: 65 Hz - 18 kHz ±3 dB
• Efficiency¹: 99 dB 1W / 1M
• Nominal impedance: 8 Ω
• Power handling²: 400 W AES
• Maximum output³: 124 dB cont, 130 dB peak
• Driver configuration:  1 x 13.5”, 1 x 1.4” Coaxial
• Dispersion: 70°H x 40°V nominal coverage
• Connectors: 1 x Phoenix with link out and 1 x speakON™
• Weight: 16.5 kg (36.37 lbs)
• Enclosure: 15 mm birch plywood
• Finish: Textured polyurethane
• Grille: Perforated steel with foam filter
• Rigging: 4 x M8 fixing points for type 80 plate. Yoke bracket positions

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated

• Venu 14 V2 Specification Sheet
• Venu V2 Series User Guide
• Venu 14 V2 Line Drawing (pdf)
• Venu 14 V2 Line Drawing (DWG)
• Venu 14 V2 3D Model
• Accessory Guide
• Venu 14 V2 GLL
