A Mid-Bass Enhancement
Designed to enhance the performance of your Arclite loudspeakers, this mutually coupling 15” enclosure extends system output over the working frequency range of 45 Hz to 569 Hz.
Arcline Series

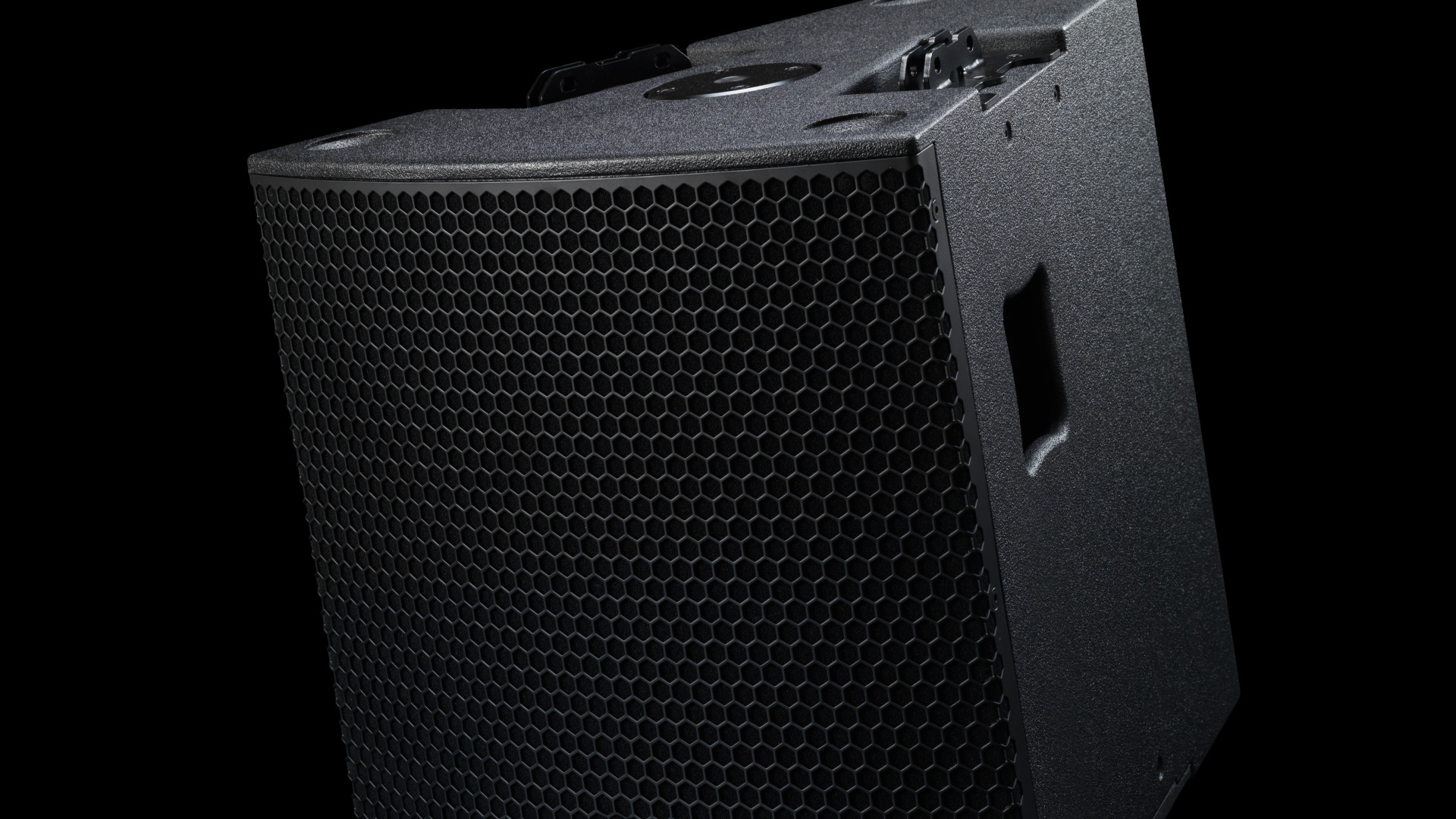

Arclite 15B
Matching Arclite mid-bass enclosure
A mutually coupling 15” cabinet designed to extend Arclite system output
Designed for Flexibility
The Arclite 15B can be used with or without rigging and can be flown underneath the Arclite. The Arclite 15B also features a rear-mounted snap-back shackle for additional flexibility and can be used as a stand-alone mid-bass enclosure.
Accessories Details
Key Features Details
- Matching Arclite mid-bass enclosure
- 15” reflex system with optional rigging compatible with Arclite loudspeakers
- High power handling of 1000 W at 8 Ohms
- 4” voice coil with dual-forced air ventilation for reduced power compression
- NL4 SpeakON™ input with link-through capability
- Rear-mounted snap-back spring shackle for secure rigging
- M20 top hat fixture for flexible mounting of satellites
- Can be used as a standalone dedicated mid-bass enclosure
Full Specifications Details
- Frequency response: 45 Hz - 569 Hz ±3 dB
- Efficiency1: 98 dB 1W / 1M
- Crossover Points: 80 Hz - 569 Hz active
- Nominal Impedance: 8 Ω
- Power handling2: 1000 W
- Maximum output3: 133 dB Cont, 139 Peak
- Driver configuration: 1 x 15” LF
- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 28.5 kg (63 lbs)
- Enclosure: 15 mm birch plywood
- Mounting: M20 top hat. Optional Arclite Rigging
- Finish: Textured ‘TourCoat’ polyurea
- Grille: Perforated steel with foam filter
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
